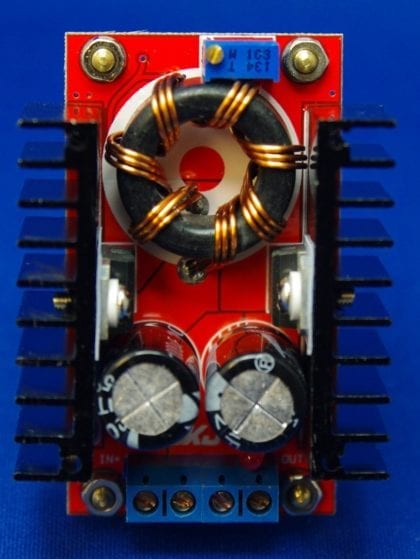

Step Up DC-DC Power Module 10A
$20.20
18 in stock (can be backordered)
Description
This compact and powerful step up DC-DC voltage booster can handle up to 10A of current while giving you an adjustable output voltage that can be more than three times higher than the input voltage. This unit is great for robotics projects which need a higher voltage in one part of the circuit but only have a low voltage power source.
Specification
| Input Voltage(DC) | 10 – 32V |
|---|---|
| Output Voltage(DC) | 12 – 35V(adjustable) |
| Output Current | 10A(MAX) |
| Input Current | 16A(MAX), requires additional cooling if using more than 10A |
| Output Power | 100W (MAX), 150W peak |
| Conversion efficiency | up to 94% |
| Output ripple | 2% |
| Working Temperature | -40 to 85°C |
| Voltage regulation | ±0.5% |
| Load regulation | ±0.5% |
| Dynamic response speed | 200µS 5% |
| Dimensions(mm) | 65 x 35 x 23.5 |
| Weight | 0.15 kg |
|---|---|
| Dimensions | 0.00000000 × 0.00000000 × 0.00000000 mm |
