Spring Pogo Pins P50-E2
Original price was: $0.61.$0.36Current price is: $0.36.
500 in stock
Description
These spring loaded contacts are perfect for making temporary electrical connections for testing, or in designs with interchangable modules.
Specifications:

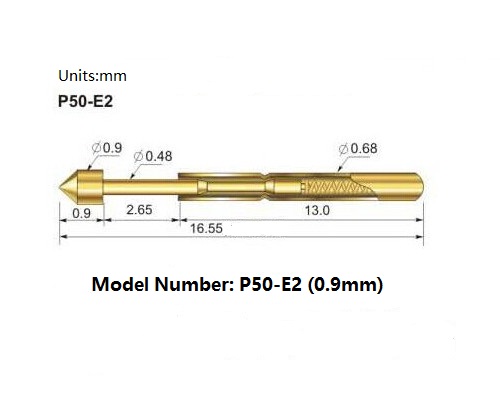

- Model Number: P50-E2
- Total Length: 16.55mm
- Min Centre : .68mm
- Full Stroke : 2.65mm
- Current Rating : 3A
- Spring Pressure : 75g
- Current Resistance : 50mΩ
- Plunger : Heat Treated Beryllium Copper
- Barrel: Phosphor Bronze . Gold Plated
- Spring : Music Wire . Gold Plated
| Weight | 0.01000000 kg |
|---|---|
| Dimensions | 0.00000000 × 0.00000000 × 0.00000000 mm |
