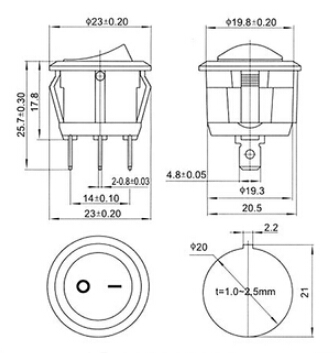

The model number of these ON-OFF 3 pins switches is KCD1-105, they are round rocker power switches which require a mounting hole of 20mm. The red rocker switch has a neon indicator.
Specification:
Contact Type
3 pins ON-OFF SPST
Voltage/Current
AC 250V 6A / AC 125V 10A
Button Colour
Red(Neon Indicator)/Green(no neon Indicator)
Dielectric Intensity
1500V AC/Min
Contact Resistance
50mΩ
Insulation Resistance
100mΩ
Weight
0.03 kg
Dimensions
0.00000000 × 0.00000000 × 0.00000000 mm
