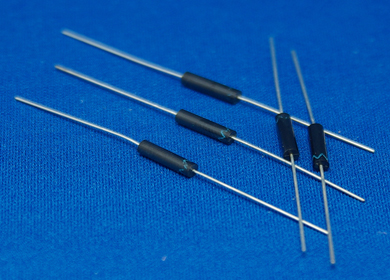

High Voltage Diodes
A selection of high voltage diodes for use in high voltage projects such as voltage multipliers or converting AC to DC
$1.88 – $9.30
Description
High Voltage rectifier diodes used for converting high voltage AC into HV DC.
These HV diodes are ideal for projects such as voltage multipliers and Lifters (EHDT)
The specifications for the various HV Diodes are as follows:
|
VRRM |
IF (Maximum Average Forward Current) |
IFSM (Maximum Surge Current) |
VF (Maximum Forward Voltage Drop) |
IR (Maximum Reverse Current) |
Trr (Maximum Reverse Recovery Time) |
| 8 kV | 10 mA | 200 mA | 20 V | 5 uA | 150 ns |
| 12 kV | 10 mA | 200 mA | 20 V | 5 uA | 150 ns |
| 20 kV | 10 mA | 200 mA | 40 V | 5 uA | 150 ns |
| 20 kV | 100 mA | 2000 mA | 60 V | 5 uA | 100 ns |
| 30 kV | 30 mA | 3000 mA | 40 V | 10 uA | 100 nS |
| 30 kV | 100 mA | 2000 mA | 45V | 10 uA | 100 nS |
| Weight | 0.002 kg |
|---|---|
| Dimensions | 0.00000000 × 0.00000000 × 0.00000000 mm |
| Type | 12kV, 10mA, 20kV, 100mA, 20kV, 20mA, 30kV, 100mA, 30kV, 30mA, 8kV, 10mA |
